How to start with Sample module?
You can check our Knowledgebase on how a module generally looks like.
Follow these steps to access the Sample module:
1. Open the Sample module
2. Open a record

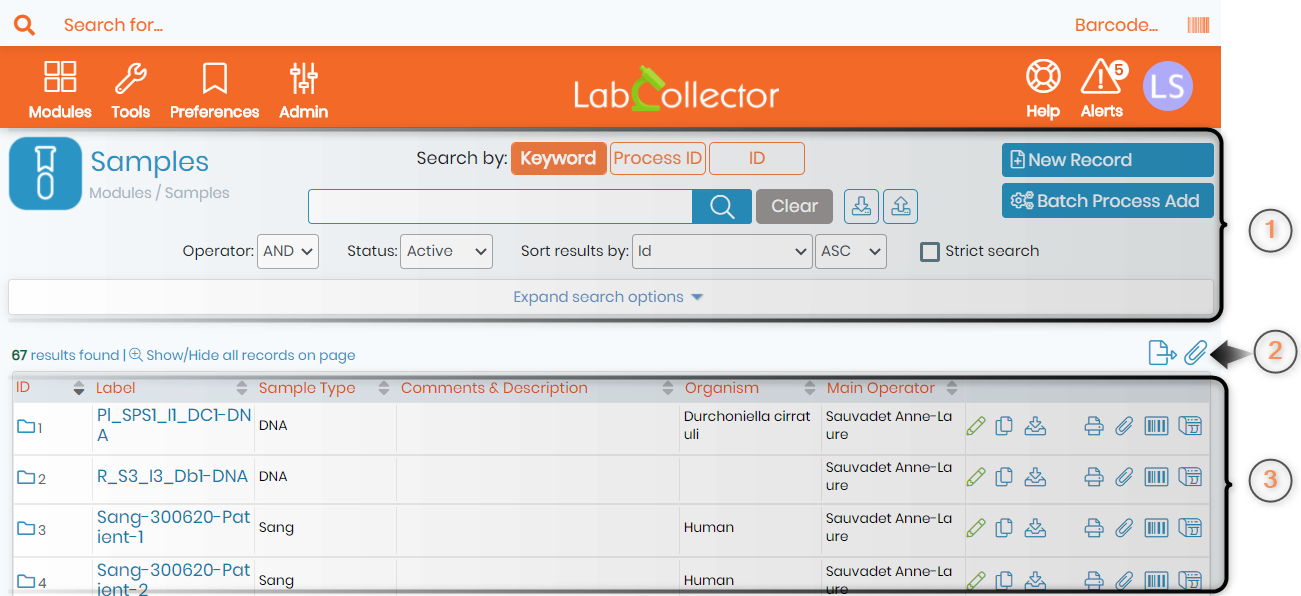

1. Open the Sample module
- 1. This area will show you the name of the module, the search options, and allow you to add a new record.
In samples modules, you have an option to directly scan the barcode of the sample package, which will automatically create a list of records for the package. You will have the option to enter the comments and description, process status, operator, type, and date for the package.
* Check our knowledgeBase on how to search in LabCollector.
- 2. The options allow you to export all your search results in HTML, CSV, EXCEL, PDF format. You can also select the field that you want to export.
Read our KnowledgeBase on what are fields and records.
The option allows you to memorize all records that can be used further in LabCollector.
- 3. The records won’t generally show at first. You need to click on the search icon with an empty search field and you will be able to see all the records.

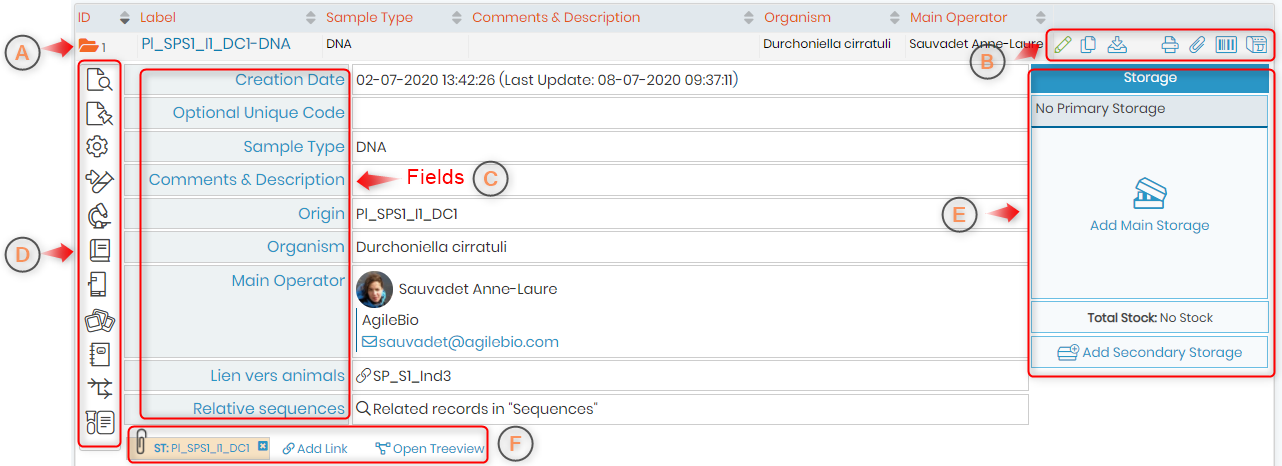

2. Open a record
- When you click on a particular record, you will see the options below.
- A. The record name and details will appear here.
- B. Options for editing the record will be displayed here. Read our KnowledgeBase records editing options.
- C. The fields related to the record will be displayed here. Read our KnowledgeBase on what are fields.
- D. This vertical bar will provide you with the options related to the record.
This icon will display the record as seen in the above image. This option will display all the related records. For example, if you have a parent and child samples. Then all the child samples will be shown here. or if you have created a link for this record in other modules, then all the related records will be visible here. This is to create a derived (like child) sample. Sometimes we use the same sample for various tests. hence the main sample becomes parent sample and the aliquots become a child or derived samples. This icon will show you all the processes and their status related to the sample. For example, if the sample is going through the HPLC process then it will be visible here.
You can see the analysis tab here. This can show you the analysis value over days or hours. For example growth rate for a bacterial sample. You can add your choice of custom fields here.
*Read our knowledgeBase on how to add custom fields in the analysis tab.
This option allows you to add any activity performed on the record. it helps to keep track of the changes done to the record and can help in compliancy.
This option helps you to keep track of where the record item is stored. Or you can create a storage location for the record. Read our knowledgeBase on how to edit storage.
This icon shows reagent and ordering info related to the record. You can associate the record to a new or an already existing reagent. Photobank is an add-on in LabCollector. You can link for example the strains & cells images and view them under this option. You can link the sample to the Electronic Lab Notebook (ELN is an add-on in LabCollector). You can link the record to a particular experiment that has been performed using the record item. This helps you have a link to where the record item was utilized and the results obtained thereafter. This icon connects you to the Workflow (WF) add-on in LabCollector. WF add-on is the one where you can make a flowchart of your process where each step requires supervisor validation. If the record is being used in a WF add-on then you will be able to see its status in WF here. If the sample is being used in the Lab Service Management (LSM) add-on then the status of the sample in LSM will be shown here.
- E. This option helps you to see or create the storage location of the item in the mentioned record. Read our knowledgeBase on how to edit storage.

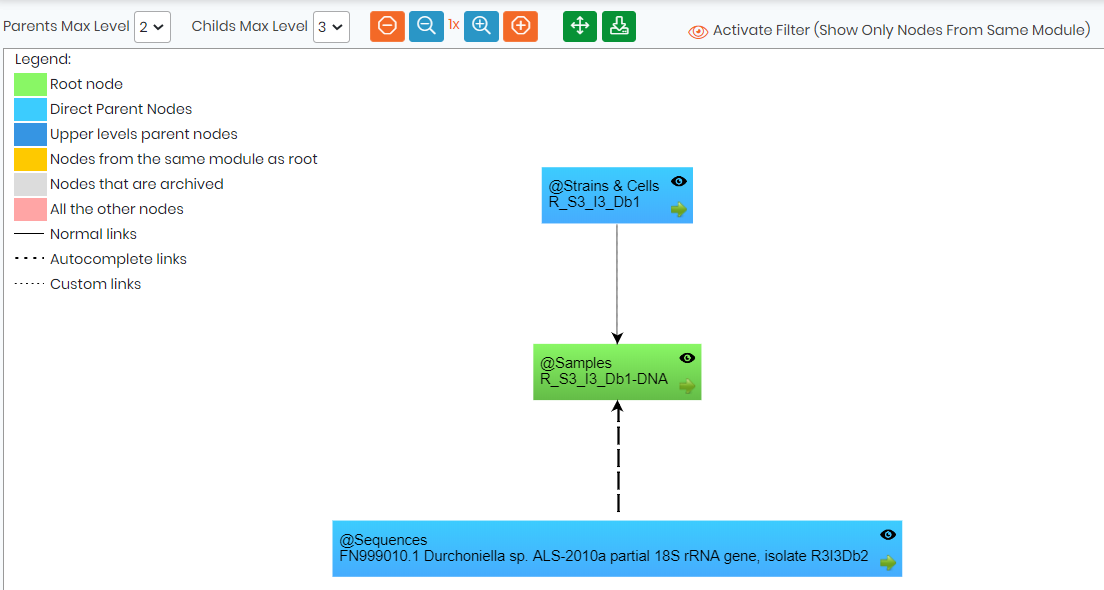

- F. Here you can see all the links that you have created for the record. These links refer to other LabCollector module files. You can add a link from LabCollector by clicking on the option “Add a link”. By clicking on the option “Open the tree”, you can see the links linked to the files. See example below.
