Ziath Scanner setup
SUMMARY:
LabCollector offers integration of rack scanners to increase the automation process in labs thereby reducing data entry errors. LabCollector scanserver uses TCP/IP server that can send results over local/remote networks. Thus, data can be imported from rack scanners & a file can be generated that is then integrated into LabCollector LIMS. Our add-ons like tube sorter can work hand-in-hand with rack scanners to ensure automated efficient sample tracking.
Scanners always work with their own software. Ziath rack scanners work with DataPaq™ software.
However, AgileBio’s ScanServer allows for the conversion of scan results into a rack/tray map file comprehensible by LabCollector using Samples Batch Tools add-on.
To set up the scan server follow the below steps:-
1. AgileBio ScanServer Installation & LabCollector set up
2. Ziath scanner setup & configuration
- Configure AgileBio Scan Server with Ziath
3. Scanning the Racks
1. AgileBio ScanServer installation & LabCollector set up
- LabCollector offers integration of rack scanners to increase the automation process in labs thereby reducing data entry errors.
- LabCollector scan server uses TCP/IP server that can send results over local/remote networks.
- Please read further our KB to know how to setup Scanserver with LabCollector Batch generator (Rack Scanner).
2. Ziath scanner setup & configuration
- For the Ziath scanner, you can read its manual which comes with the scanner or you can find it here.
- Download and install the appropriate driver before connecting the scanner and installing the DataPaq™ software.
* The DataPaq software decodes 2D barcodes using an algorithm by Ziath. DataPaq™ displays the results of the scan and can identify the difference between a correctly scanned tube (green), a damaged tube (red), and a missing tube (grey). Also, any tube image can be clicked on and the individual scan is shown (on the right-hand side) with the tube location and barcode. - Connect the scanner to the computer and switch on using the button at the back.
- Install DataPaq™.

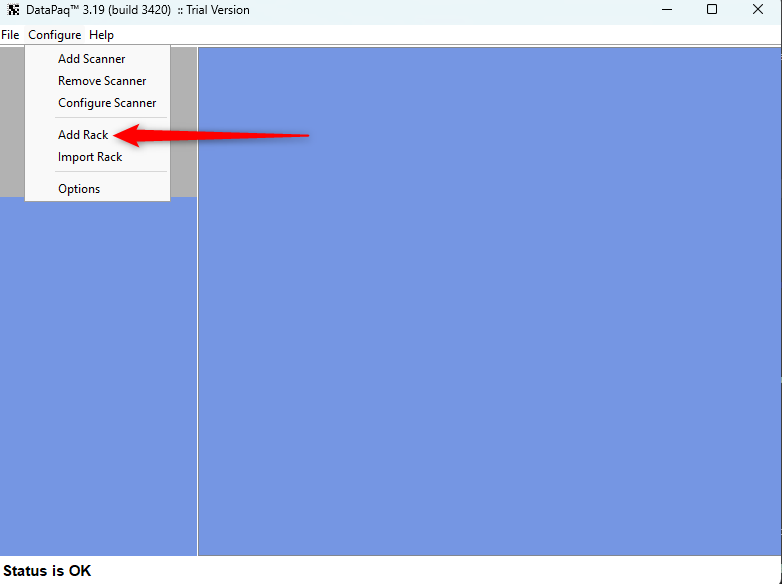

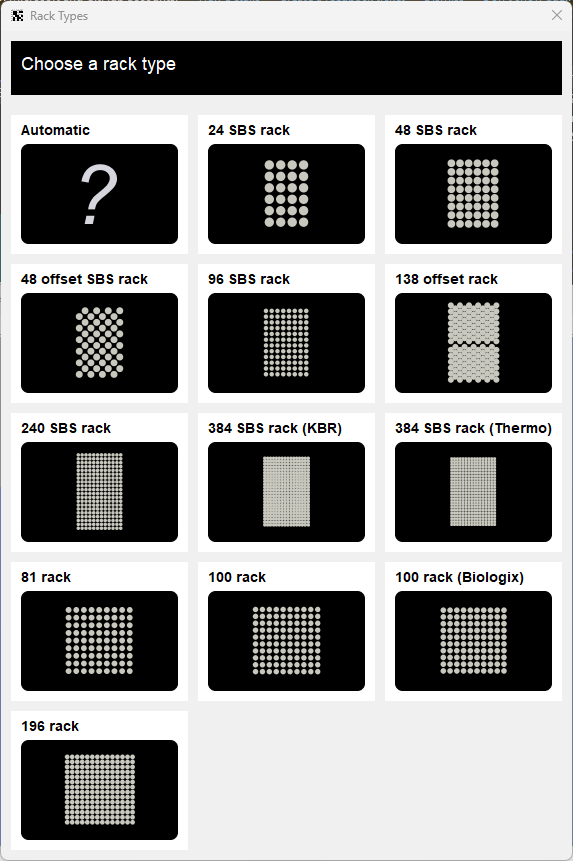

- Configure your scanner in DataPaq™, and note the unique ID used for remote interaction (Image source: Ziath).

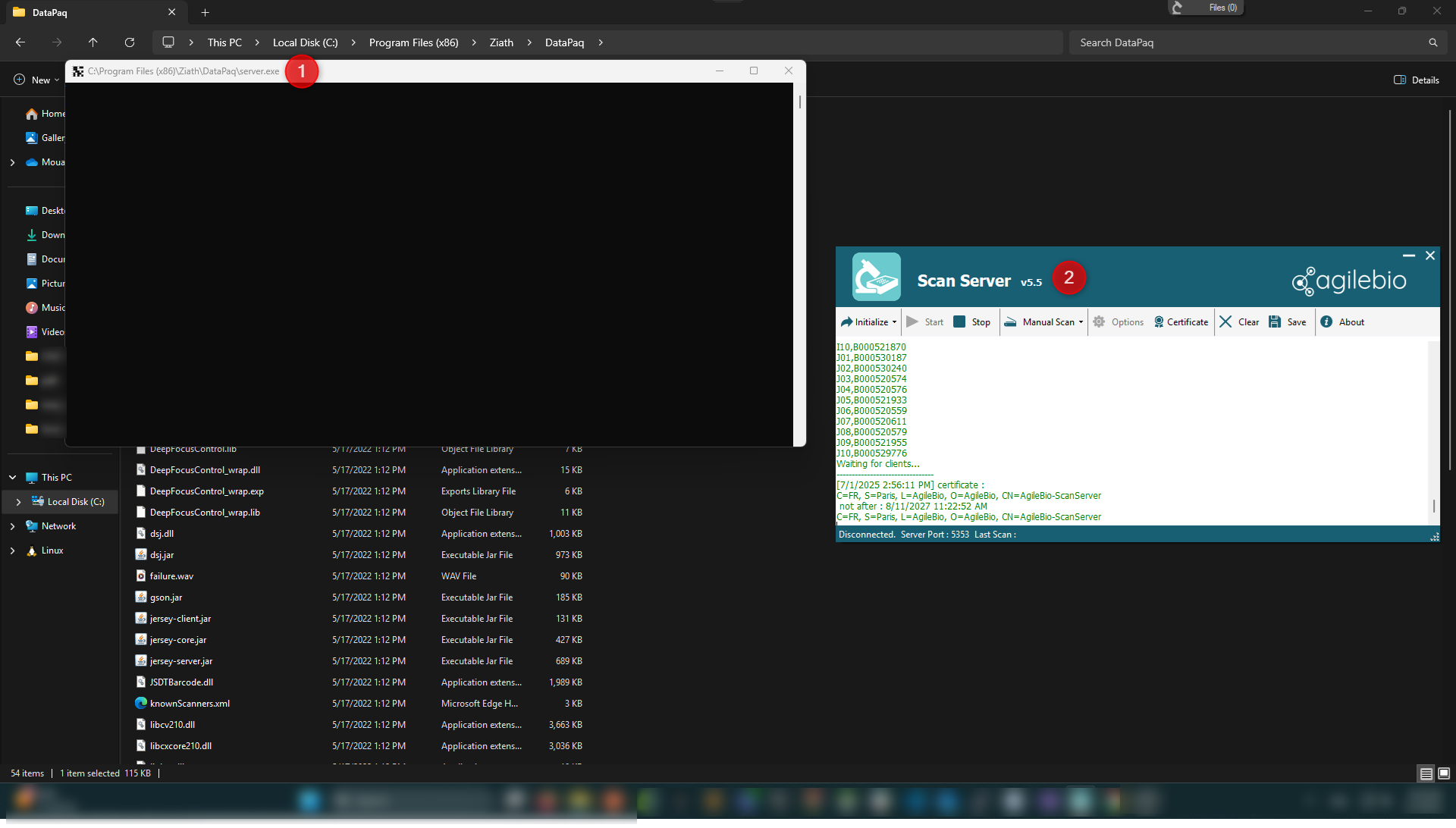

- For DataPaq™ v3.15 or later, in order to activate remote communication, you should run the file “C:\Program Files (x86)\Ziath\DataPaq\server.exe” -s inside the installation folder. A black command prompt window in which you should keep it open like the below image.
- The server can be started up using the server mode. (Read the manual which comes with the scanner or you can find it here or read this PDF)
- The server mode starts DataPaq and listens on a specified port for incoming commands. You can confirm the scan like below.

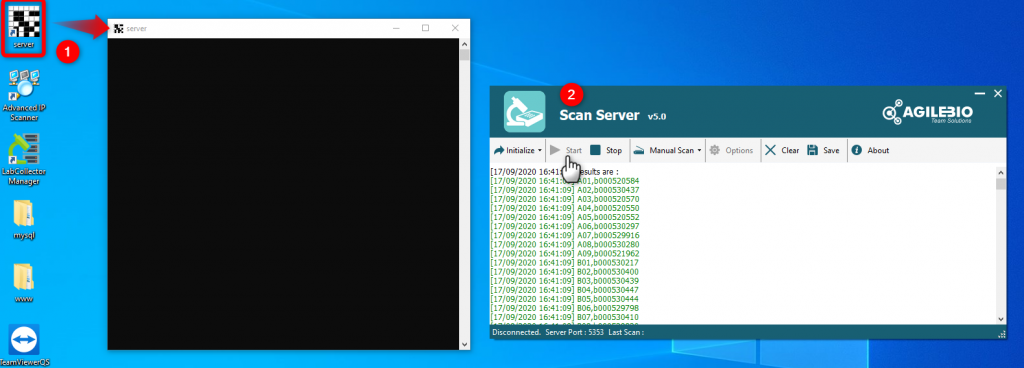

- 1. The DataPaq™ installation will create a shortcut icon on the desktop as shown in the image. You need to first start the server by clicking the icon.
– Once the server is on you need to scan the server.
–NOTE: Shortcut of Server is referring to “Server.exe” file inside DataPaq™ installation folder with this command: “[install folder]\server.exe” -s

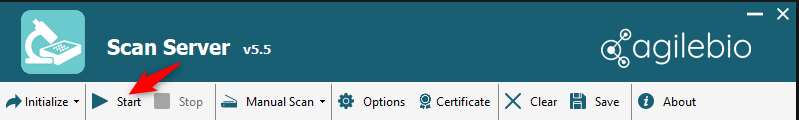

- 2. Click on the start in Scan Server by AgileBio.
– Use the LabCollector page for scanning.
-
Configure AgileBio Scan Server with Ziath

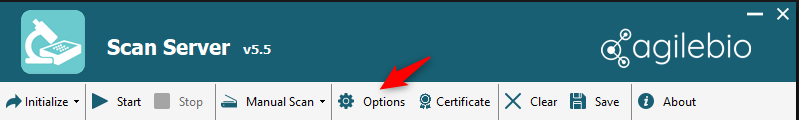

- Under the AgileBio Scan Server, click on the Options.
- When you click on the OPTIONS the below box will pop-up.

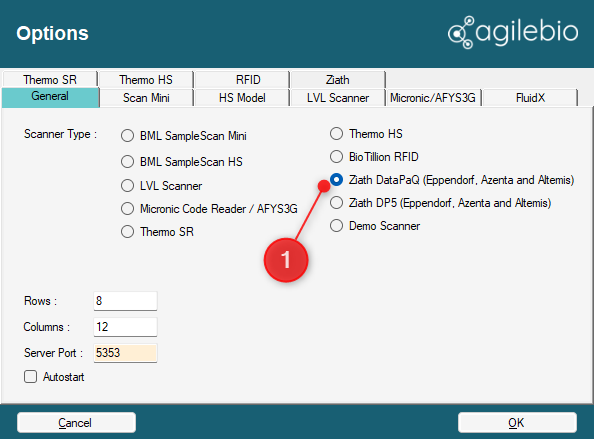

- 1. The server port is the same as in section 2 (Port 5151).

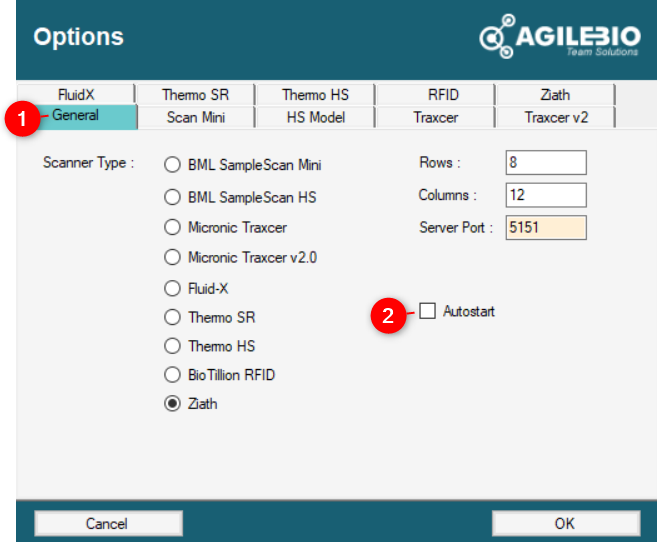

- 2. Check the box Autostart if you want to start scanning using Batch generator (Rack Scanner) tool.

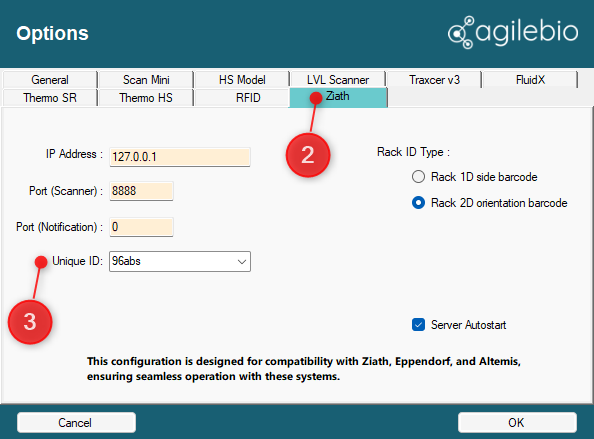

- Click on the ZIATH option in the AgileBio scanner and you will see the below options.

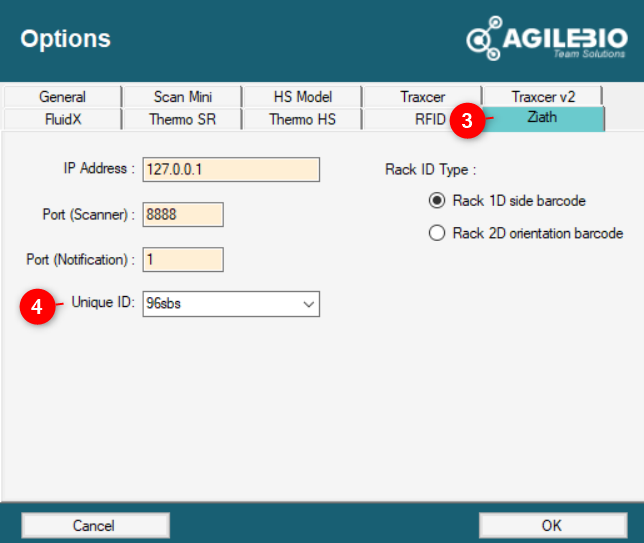

- 3. In the Ziath section, the IP address, scanner port, and notification port are by default.
- 4. You have to choose the unique ID corresponding to your rack that you define in DataPaq™ (see just above) from the list.
- Under the AgileBio Scan Server, click on the Options.
-
NOTE: Check your firewall about the Ports security.
- Now, you are ready to scan your rack!
NOTE: Tracxer software needs to be open in the background.
3. Scanning the Racks
- Start your scanner and open AgileBio ScanServer (DataPaq™ will be open in the background)
NOTE: Be aware that Ziath scanners usually have an automatic sleeping mode which can be removed. If the scanner is sleeping, it will not react to scan requests.
- Start the AgileBio Scan Server process.
- In the LabCollector go to TOOLS -> Batch generator (Rack Scanner) tool. Below the Batch generator options are explained in detail.
-
A. 1. Direct Scanner trigger input
- This tool allows direct imports of scanned well rack/trays from several manufacturers (Micronic, BioMicroLab, FluidX, Thermo, Ziath, Biotillion…).
- The scanner generates a rack/tray map file that is loaded into LabCollector.
- This accelerates sample registration with direct storage definition.
- LabCollector recognizes scanner file formats automatically.
-

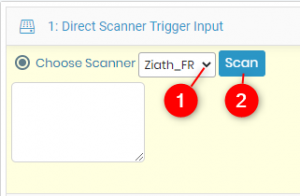

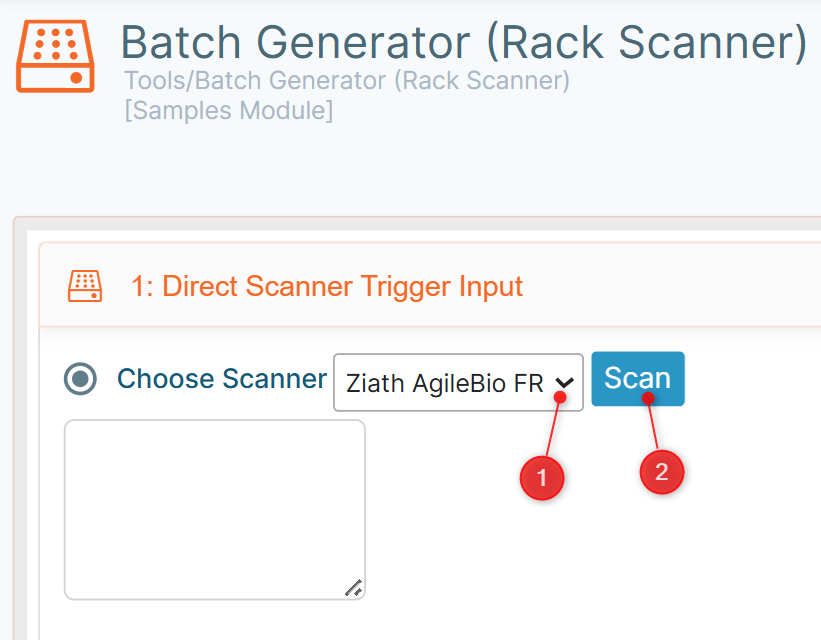

- 1. Choose the rack that you set up in LabCollector from the list,
- 2. Then click on Scan! button, the rack/box map preview will appear.
NOTE: JAVA has to be updated to allow the Scan! button to be active.
NOTE: If you have problems after the Process step, such as the list of positions not loading fully, please ensure that your php.ini file has a sufficient memory limit. The php.ini file can be found via the LabCollector -> Server Manager -> Configure Servers -> PHP Search for “memory_limit” in this file and increase the figure as needed e.g. 512M. Check the KB for more information on LabCollector server manager.
-
B. 2. Scanner Output or File Import
- This mode allows you to import a file produced by a rack scanner and you can choose the correct format of the file.

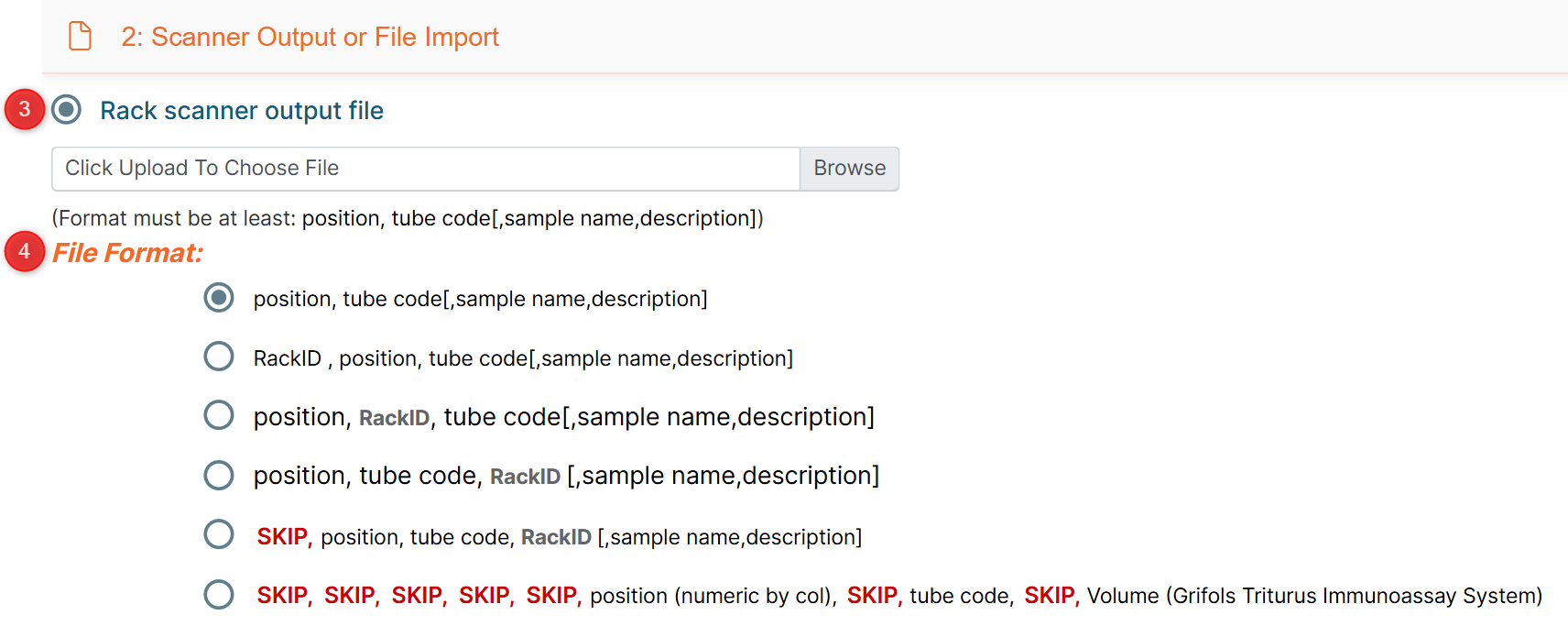

- 3. Here you can select the output file for the rack scanner.
- 4. You can choose the file format from the options if you want the position, RackID, tube code, etc.
- This mode allows you to import a file produced by a rack scanner and you can choose the correct format of the file.
-
C. 3. Generic
- The External Data Source part can be used together with the Direct scanner trigger mode if you want to import additional information about the samples at the same time.
- 5. You can do generic settings like rack or box (which rows and columns) you don’t want to scan.
- 6. You can choose the options depending upon if it’s a storage box or microplate.
- 7. Here you can choose to automatically name the record.
– You can assign an automatic name or add a prefix and suffix according to your requirement.
- The External Data Source part can be used together with the Direct scanner trigger mode if you want to import additional information about the samples at the same time.
-

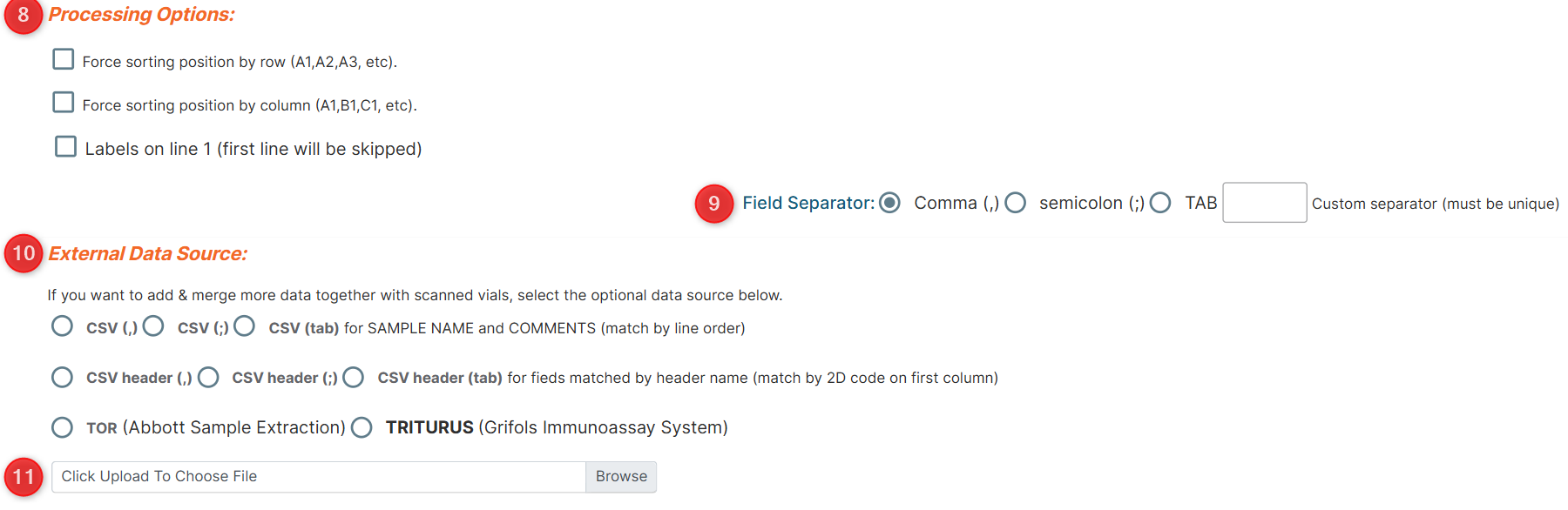

D. Processing options.
- 8. Processing options allow you to process the box or plate by either forcing the specific position by row and column or labels.
- 9. You can choose a field separator that you want in your CSV.
- 10. If you want to add and merge more data together with scanned vials you can choose the format of the CSV.
- 11. You can choose the file that you want to upload.
-

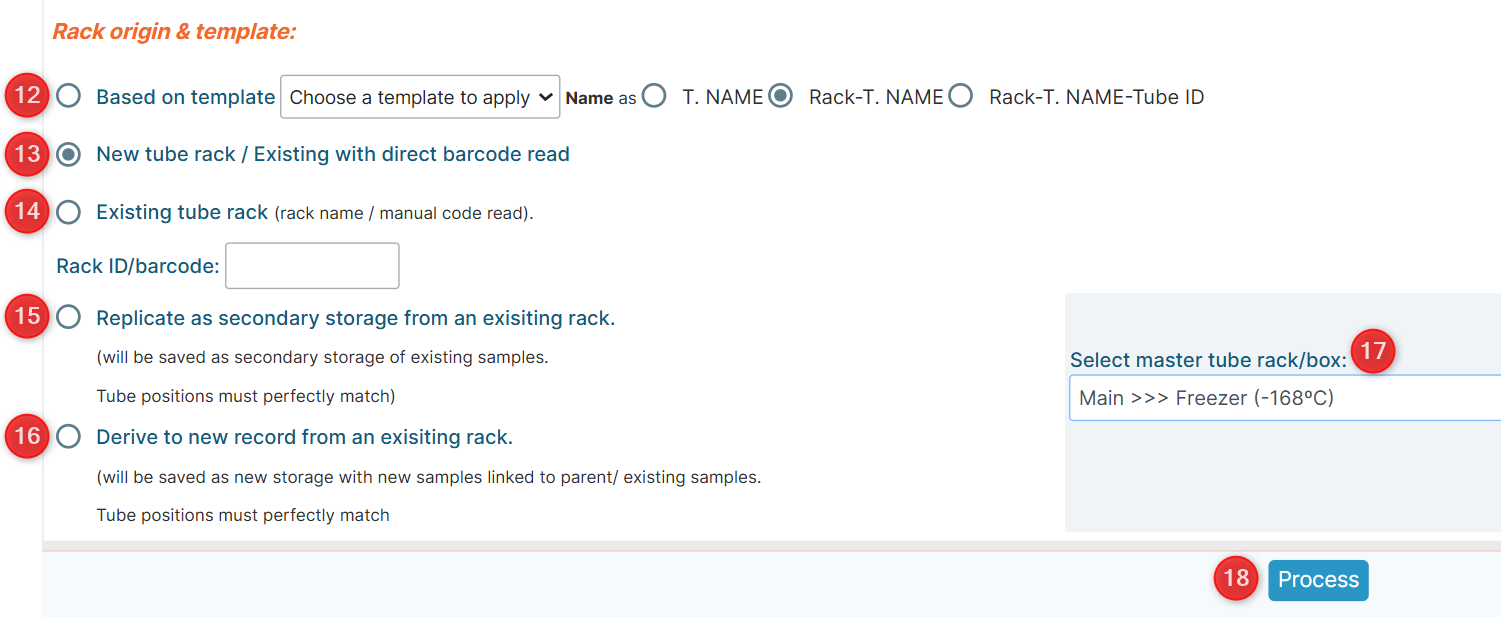

E. Rack origin and template
- 12. Based on the template [choose a template to apply].
NOTE: You can create this template by going to ADMIN -> SETUP -> RACK SCANNERS. Check section 2 of this linked KB. - 13. You can choose if you want to create a new tube/rack existing rack with a direct barcode read.
- 14. This option allows you to choose the existing tube rack, enter the rack ID/barcode corresponding, which is already in LabCollector.
- 15. Here you can replicate the existing rack, select tube rack/box in the list. In this case, the box will be saved as secondary storage of existing samples.
- 16. This option allows you to derive to a new record from the existing rack.
- 17. Here you can select the master tube or rack from the below options.
NOTE: You can create the storage by going to ADMIN -> STORAGE -> MANAGE STORAGE. Check this linked KB. - 18. Once you have entered all the details you can click on process.
- 12. Based on the template [choose a template to apply].
Related topics:
- Please see the KB on how to set up a Rack scanner with LabCollector.
- Please check how to set up a FluidX rack scanner with a scan server and LabCollector.
- Please check how to set up a Micronic Tracxer code reader setup with a scan server and LabCollector.
